80W Boat Shape Metal Housed High Power Dynamic Braking Resistors
Structure
1.High Power & small in size,preferred products for frequency converter,servo & numerical control industry.
2.Anti-seismic type Aluminum Housing Resistor,small size,high power,fast heat dissipation,can be used with cooling device.
3.With High Power&small in size,high stability,impact resistance and easy installation,good reliability & high consistency.
Features
1.Durable,vibration-proof,dissipates heat well and low temperature coefficient with resistance varying in direct proportion.
2.High stability,impact resistance and easy installation;Good reliability & high consistency.
3.For non-standard technical requirements and custom special applications,please contact us to discuss the details.
4.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.
Specification
| Performance Charactertics | |
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value
R1:Room Temperature T0+100℃(T1)Resistance Value | ±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s;10 times rated power for 5s;25 times rated power for 1s | △R≤±(2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ;
2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; | △R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 1000V DC | 50M-1000MΩ1Min |
| Terminal Tensile Strength | wire diameter ≤1.5 with 20N,wire diameter ≥1.5 with 40N,
terminal tension 20N
copper end /stainless steel end,40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Thermal Shock | At 30℃,30min,-55℃,15min | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.240hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications
Widely used in frequency converter,elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,
wind power generation,solar power generation,automation equipment,railway system and other industries.

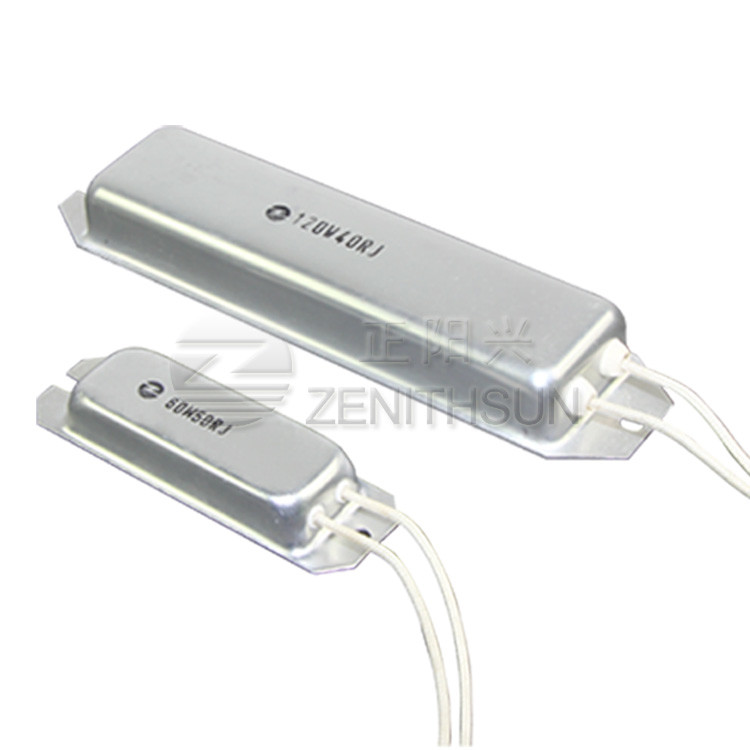

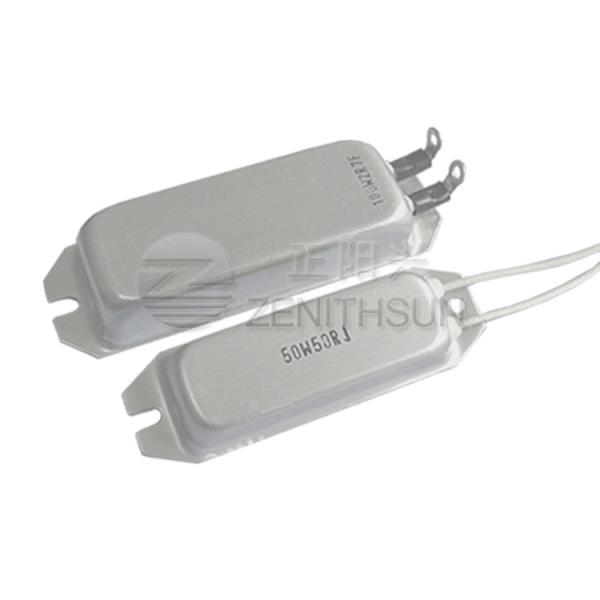

Products Image
