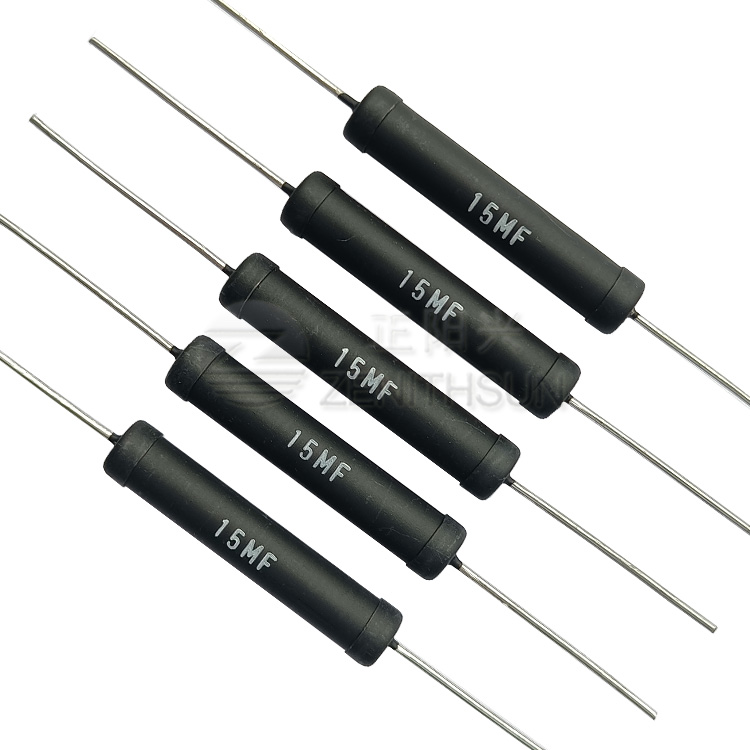

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Name: Precision 08W 6W High Voltage Resistor Thick Film Non Inductive
Brand: ZENITHSUN
Price: 2.00 USD

China Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive wholesale

Model Number : RI80-RIT

Place of Origin : Guangdong, China

Brand Name : ZENITHSUN

Supply Ability : 5000 Piece/Pieces per Week

MOQ : 10 pieces

Price : $2.00 - $50.00/pieces

Application : medical CT and X-ray machines

Rated Power : 0.8W-6W

Resistance : 10Ω ~1GΩ, 10Ω - 1GΩ

Supplier Type : Original manufacturer

Technology : Thick Film

Package Type : Throught Hole

Resistance Tolerance : ±1%,±2%,±5%,±10%

Temperature Coefficient : 20PPM-150PPM, 20PPM-150PPM

Tolerance : ±1%,±2%,±5%,±10%

Contact Now

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

0.8W-6W High Voltage Thick Film Non-Inductive Precision Resistors

Structure

1. Screen printing ,resistor film printed layer with thickness of tens of microns,sintered at high temperature.The matrix is 95% aluminum oxide ceramic, with good thermal conductivity and high mechanical strength.The resistor film with precious metal ruthenium slurry, with stable electrical properties.

2. Technological Process: electrode printing → electrode sintering → resistor printing →resistor sintering → medium printing →medium sintering, then resistance adjustment, welding, encapsulation and other processes.

rated power	0.8w-6w
resistance	1-1GΩ
tolerance	±1%,±2%,±5%,±10%
color	Black or customized
temperature coefficient	±150PPM
resistance element	thickfilm
lead material	Gold Plated

Application

Production Time : 2-3 weeks . Widely used in high voltage power equipment, medical CT and X-ray machines, high voltage testing equipment, high voltage power supply, vacuum equipment, high voltage frequency converter, voltage divider, high voltage circuit, capacitor discharge circuit,high voltage buffer circuit, environmental protection equipment, electrostatic dust removal equipment,power system, high voltage instruments and meters, pulse modulator, imaging equipment, impulse voltage generator, etc .

Product Advantage

Product Details

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Features

1.Work under continuous high voltage environment. 2.Power Range :0.8W-6W . 3.Non-Inductive,Resistance-high voltage,small size,high power,long life,Moisture Resistance ,High Stability. 4.Lead Material:copper,tin-plated.

Product Dimension

Shipping

1. By courier,such as DHL,FED-EX,UPS,etc,it is door to door, usually 3-4 day to arrive;
2. By air to the airport,usually 5-7 days to arrive;
3. By sea to sea port,usually 15-30 days to arrive;

If you delivery time is very urgent, we suggest you choose by courier or by air.
If it is not very urgent,we will suggest you choose by sea,it is very cheap.
For more details,please contact with us.
